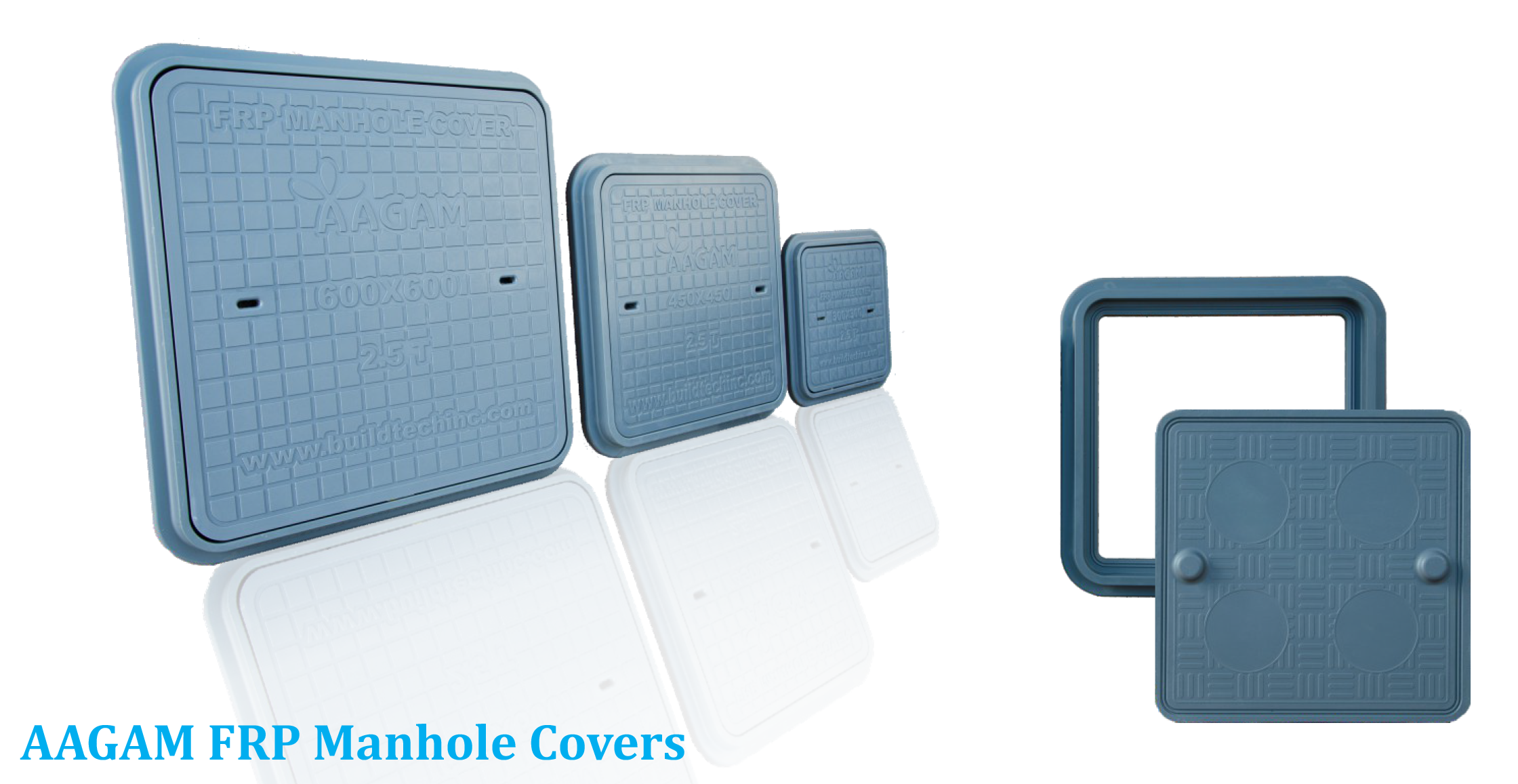

Aagam chamber-cover

– Aagam Chamber Covers–

– The special Features of Aagam Manhole Covers–

FRP-Fibre Reinforced Polymer is a composite material made from Glass Fiber Reinforcement in a polymer matrix. The polymer is an epoxy, Vinyl Ester or unsaturated polyester thermo setting component and glass fibres in the form of woven roving, chopped strand mat and surfaceing veil. Aagam FRP manhole covers are manufactured using one-step Compression Molding Technology under high pressure resulting in a dense compact product with high impact and tensile strength.

Aagam manhole covers shall be made of Glass Fiber-Reinforced polymer with 45% to 70% of glass fibers, utilizing a thermoset resin matrix, manufactured with high pressure closed mould technology.

With uniform compaction throughout the body, the core material gives rigidity where as the FRP shell provides structural elasticity to the core material. This unique combination of rigidity and elasticity gives Aagam manhole cover a distinctive advantage over Cast Iron and Concrete Covers with better compressive and breaking strength. matrix, manufactured with high pressure closed mould technology.

Aagam FRP range of Manhole Covers and frames have been specially developed to offer safer and easier access to underground inspection services with reduced risk of injury and meet the load requirements from pedestrian walkways to highways; suitable for Inspection chambers, UG Tanks, Overhead Tanks, Silt Trap chambers, Earth Pits, Rain Harvesting chambers, Podium catch Basins, STP tanks, Gas line chambers, Electrical & Communication chambers.

The special Features of Aagam Manhole Covers

  • Uniform compact body structure.
  • No Air voids and internal fissures.
  • Tough surfaces with high impact strength.
  • Closed Key holes that block drain odour and dust falling inside.
  • Precise Double Seals preventing water flow inside.
  • Round corners prevent edges chipping.
  • Non skid surface with better Aesthetics.
  • Withstand harsh corrosive environments.
  • Minimal effects to ultraviolet radiation.

Benefits of Aagam Manhole Covers

  • Decorative and Antislip surface finishes with rich impregnated colors.
  • High strength to weight ratio.
  • Non Corrosive, Non Conductive, Non Magnetic and Fire Retardant.
  • Light weight, hence reduced injuries while handling and installation.
  • No Scrap Value, hence eliminate theft of covers.
  • For all traffic loads from pedestrian walkways to Heavy Vehicle movements – 1.5 Tons to 40 Tons.
  • Temperature withstanding from -40°C to +80°C.
  • Firm and do not move – Locked into the installed place.
  • Reduce Maintenance cost and Save Energy.

Aagam Manhole Covers Installation Guidelines

  • Prepare appropriate height of bricks/concrete seating bed over-which frame to be installed.
  • When adjusting the height of cover by more than 40mm a concrete ring can be used.
  • Spread 20-60 mm fine layer of cement mortar bed, install the frame with full contact and align at the correct height.
  • The frame must always be in full contact with the mortar bed and capable of bearing. If the substructure is not executed correctly, subsequent traffic load will cause loosening, early wear, rattling and even breakage of cover.
  • Clean the frame and cover contact surfaces completely and no mortar residue must be left over.
  • Close the cover and check that it is correctly supported on the frame.

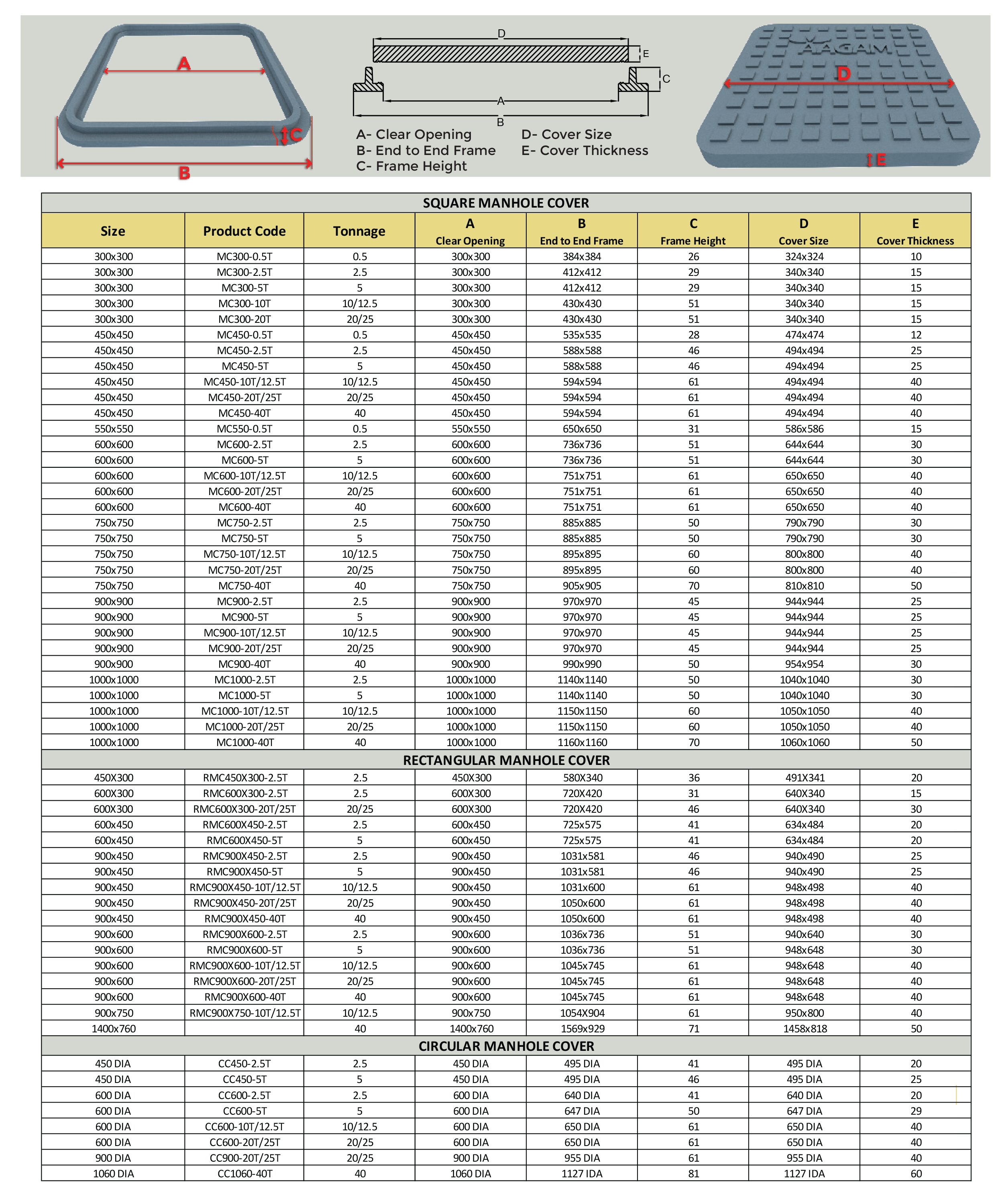

Aagam Manhole Covers Size and Clear Opening


Product Details

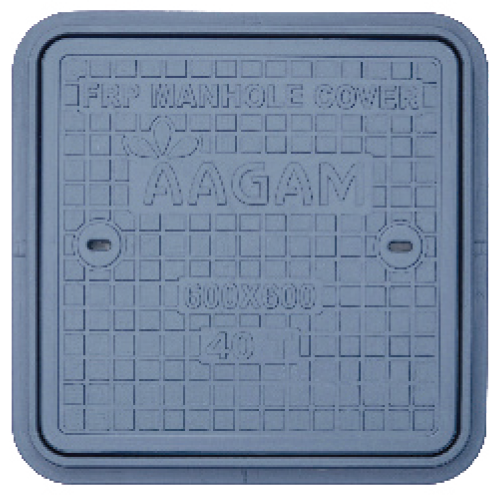

MHC 300MM X 300MM - Dark Grey

MHC 300MM X 300MM - Dark Grey

MHC 450MM X 450MM - Dark Grey

MHC 450MM X 450MM - Dark Grey

MHC 600MM X 600MM - Dark Grey

MHC 600MM X 600MM - Dark Grey

MHC 750MM X 750MM - Dark Grey

MHC 750MM X 750MM - Dark Grey

 MHC 900MM X 900MM - Dark Grey

MHC 900MM X 900MM - Dark Grey

MHC 1000MM X 1000MM - Dark Grey

MHC 1000MM X 1000MM - Dark Grey

MHC 300MM X 300MM - Stone Grey

MHC 300MM X 300MM - Stone Grey

MHC 450MM X 450MM - Stone Grey

MHC 450MM X 450MM - Stone Grey

MHC 600MM X 600MM - Stone Grey

MHC 600MM X 600MM - Stone Grey

MHC 750MM X 750MM - Stone Grey

MHC 750MM X 750MM - Stone Grey

MHC 900MM X 900MM - Stone Grey

MHC 900MM X 900MM - Stone Grey

MHC 1000MM X 1000MM - Stone Grey

MHC 1000MM X 1000MM - Stone Grey

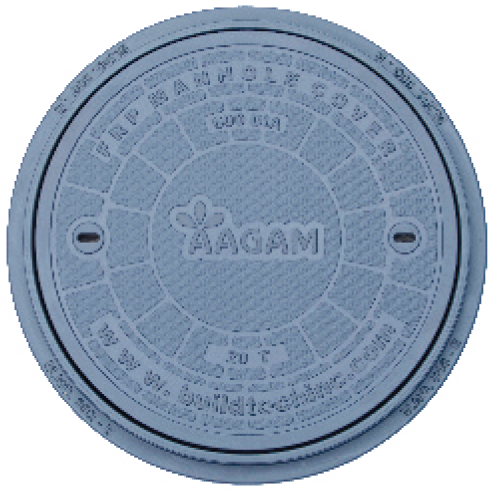

CIRCULAR MANHOLE COVERS
DIA 600MM - Dark Grey

DIA 600MM - Dark Grey

DIA 600MM - Stone Grey

DIA 600MM - Stone Grey

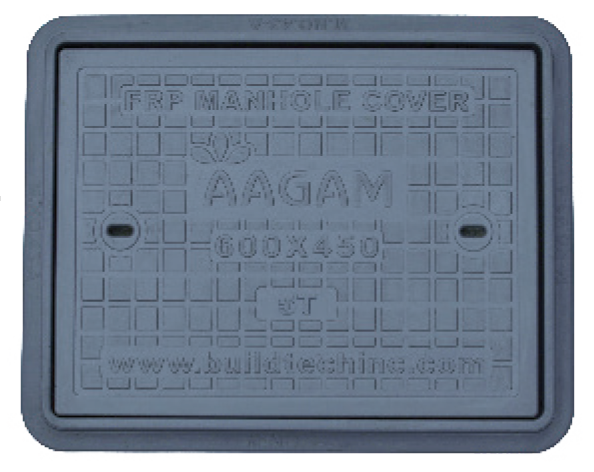

RECTANGLE MANHOLE COVERS
MC - 450MM X 300MM - Dark Grey

MC - 450MM X 300MM - Dark Grey

MC - 450MM X 300MM - Stone Grey

MC - 450MM X 300MM - Stone Grey

MC - 600MM X 300MM - Dark Grey

MC - 600MM X 300MM - Dark Grey

MC - 600MM X 300MM - Stone Grey

MC - 600MM X 300MM - Stone Grey

MC - 600MM X 450MM - Dark Grey

MC - 600MM X 450MM - Dark Grey

MC - 600MM X 450MM - Stone Grey

MC - 600MM X 450MM - Stone Grey

MC - 900MM X 450MM - Dark Grey

MC - 900MM X 450MM - Dark Grey

MC - 900MM X 450MM - Stone Grey

MC - 900MM X 450MM - Stone Grey

MC - 900MM X 600MM - Dark Grey

MC - 900MM X 600MM - Dark Grey

MC - 900MM X 600MM - Stone Grey

MC - 900MM X 600MM - Stone Grey
