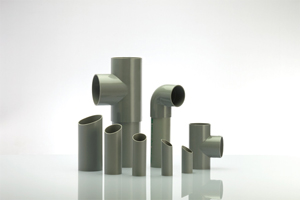

Aquasafe pipes & fittings intended to use with Astral Ultradrain & Astral DWV Systems for drainage & sewerage applications.

    AVAILABLE SIZE :
•   Class 2 (4 kgf/cm2)   : 63 mm to 250 mm as per IS 4985
•   Class 3 (6 kgf/cm2)   : 40 mm to 250 mm as per IS 4985
•   Class 5 (10 kgf/cm2) : 25 mm to 250 mm as per IS 4985

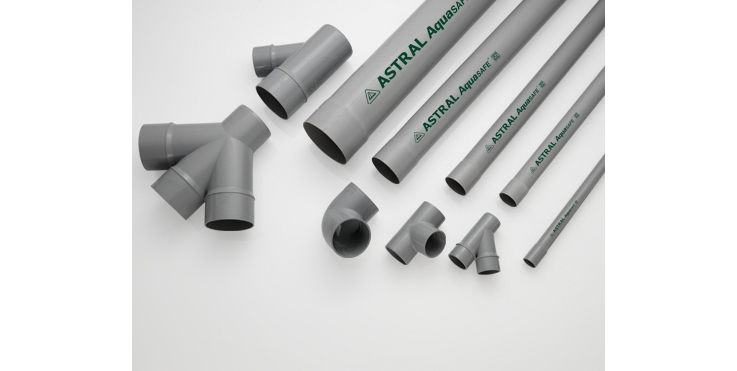

Astral AquaSAFE

ASTRAL Aquasafe pressure pipes are manufactured in accordance with IS : 4985 covering a complete range for 20 mm to 250 mm. They are available in pressure ratings of 2, 3, 6 & 10 kgf/cm as defined in IS : 4985. The pipes are provided with plain socket and suitable for solvent cement jointing.

ASTRAL Aquasafe Pipes & Fittings are available in light grey colour.

The main application is in agriculture, For water supply, drip irrigation and sprinkler lines.

The are also suitable for distribution of drinking water, cable ducting, ventilation pipe lines, slurry lines etc.

Pipes

Pipe

MM	INCH	2.5Kg	4Kg	6Kg	10Kg	16Kg
20	½ "	NA	NA	NA	AVAILABLE	AVAILABLE
25	¾"	NA	NA	NA	AVAILABLE	AVAILABLE
32	1"	NA	NA	NA	AVAILABLE	AVAILABLE
40	1¼"	NA	NA	AVAILABLE	AVAILABLE	AVAILABLE
50	1½"	NA	NA	AVAILABLE	AVAILABLE	AVAILABLE
63	2"	NA	AVAILABLE	AVAILABLE	AVAILABLE	NA
75	2½"	NA	AVAILABLE	AVAILABLE	AVAILABLE	NA
90	3"	NA	AVAILABLE	AVAILABLE	AVAILABLE	NA
110	4"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
140	5"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
160	6"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
180	7"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
200	8"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
225	9"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA
250	10"	AVAILABLE	AVAILABLE	AVAILABLE	AVAILABLE	NA

Fittings

Coupler

Size (mm.)	Part No.
40	AS329-040
50	AS329-050
63	AS329-063

Door Cap

Size (mm.)	Part No.
50	AS348-050
63	AS348-063

Elbow 45°

Size (mm.)	Part No.
40	AS317-040
50	AS317-050
63	AS317-063

Elbow 90°

Size (mm.)	Part No.
40	AS306-040
50	AS306-050
63	AS306-063
75	AS306-075
90	AS306-090
110	AS306-110

End Cap

Size (mm.)	Part No.
40	AS349-040
50	AS349-050
63	AS349-063
75	AS349-075
90	AS349-080
110	AS349-110
160	AS349-160

http://astralpipes.com../productcategorylogo/productimage/939_l.gif

FAPT

Size (mm.)	Part No.
40	AS335-040
50	AS335-050
63	AS335-063
90	AS335-090
110	AS335-110

MAPT

Size (mm.)	Part No.
40	AS336-040
50	AS336-050
63	AS336-063
90	AS336-090
110	AS336-110

Pipe Clip

Size (mm.)	Part No.
40	AS399-040
50	AS399-050
63	AS399-063

Reducer Bush (Spg x Soc)

Size (mm.)	Part No.
75 x 63	AS 337-756
75 x 50	AS 337-755
75 x 40	AS 337-754
63 x 50	AS 337-635
63 x 40	AS 337-634
50 x 40	AS 337-504

Reducer Coupler

Size (mm.)	Part No.
110 x 63	AS329-116
110 x 75	AS329-117
110 x 90	AS329-119

Single Y

Size (mm.)	Part No.
50	AS375-050
63	AS375-063

Tee

Size (mm.)	Part No.
40	AS301-040
50	AS301-050
63	AS301-063
75	AS301-075
90	AS301-090
110	AS301-110

Adhesives

Adhesive Solution

Size	Part No.
237 ml	SWTIN-237
473 ml	SWTIN-473
946 ml	SWTIN-946

1)DIMENSIONS OF UNPLASTICISED PVC PIPES AS PER IS : 4985-2000

All Dimensions in Millimeters

Nominal Dia	Mean O.D.				Working Pressure, Mpa
	Mean O.D.				Class 1 0.25			Class 2 0.4			Class 3 0.6			Class 4 0.8			Class 5 1.0			Class 6 1.25
	Min	Max	Min	Max	Avg	Min	Max	Avg	Min	Max	Avg	Min	Max	Avg	Min	Max	Avg	Min	Max	Avg	Min	Max
(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)	(11)	(12)	(13)	(14)	(15)	(16)	(17)	(18)	(19)	(20)	(21)	(22)	(23)
20	20				-	-	-	-	-	-	-	-	-	-	-	-		11
25	25				-	-	-	-	-	-	-	-	-
32	32				-	-	-	-	-	-	-	-	-
40	40				-	-	-	-	-	-
50	50				-	-	-	-	-	-
63	63				-	-	-
75	75				-	-	-							4		4
90	90				17						37				4			5
110	110				2		2	3		3							7
125	125										5		5
140	140					2
160	160		158	162
180	180										7			9	8
200	200													10				11
225	225							6		6					10
250	250		247	253
280	280												11	14
315	315	316									12				14

2)CONSUMPTION OF SOLVENT CEMENT :

20	25	32	40	50	63	75	90	110	140	160	180	200	225	250	280	315
324	270	225	180	130	125	103	79	54	36	27	25	15	12	9	7	5

3) HANDLING INSTRUCTIONS :

Pipes should be kept on an even surface while storing. They should be properly supported and should not be stacked for heights more than 1.5m for longer durations.

While laying big pipelines provision should be made for expansion joints, airvents and proper anchorage.

Pipes or fittings should not be cleaned with solvent cement. Quality of solvent cement plays an important role and hence it is recommended to use good quality solvent cement only.

For large diameter and higher class pipes (6 Kgf/cm and above) always use heavy duty solvent cement. Very old, hard, semi-fluid solvent cement should not be used.

• Manufactured from quality raw material.

• Easy handling, transpor tation & installation.

• ASTRAL Aquasafe uPVC pressure pipes offer excellent chemical resistance.

• ASTRAL Aquasafe uPVC pressure pipes are non conductive.

• Longevity of life cycle.

• Easy of use.

• Better flow for optimum yelds.

• ASTRAL Aquasafe uPVC pressure pipes with selfit jointing system ensures leakproof jointing system for optimum results.

• ASTRAL Aquasafe uPVC pressure pipes are manufactured on most sophisticated state of the art machines to ensure a superior product at every time.

• ASTRAL Aquasafe uPVC pressure pipes offer high strength and durability.

• ASTRAL Aquasafe uPVC pressure pipes are non reactive with acidic and alkali substances in water. they are ideal for drain water discharge as well as most of the chemicals.

• ASTRAL Aquasafe uPVC pressure pipes are uv stabilized and hence suitable for outdoor applications.

• ASTRAL Aquasafe uPVC pressure pipes are manufactured under highest quality standards which ensures reliability of the product.
